⚙️ Complete Casting Engineering Platform
C3P Cast-Designer Software for
Casting Stress & Distortion Analysis

Cast-Designer Stress Advanced Casting Stress, Distortion & Performance Simulation

Fully coupled flow, thermal, solidification & stress simulation

Introduction

During the casting manufacturing process, components experience complex thermal and mechanical phenomena from molten metal filling, solidification, cooling, and knock-out. Uneven temperature distribution, restricted shrinkage, mould constraints, and phase transformations generate internal stresses that can result in distortion, residual stress, hot tearing, dimensional inaccuracies, and premature failure.

Cast-Designer Stress is an advanced thermo-mechanical simulation solution that accurately reproduces the complete casting manufacturing cycle. Unlike conventional structural FEA, which assumes an ideal finished component, Cast-Designer performs a fully coupled flow, thermal, solidification, and stress simulation, capturing real manufacturing conditions and their influence on final casting quality.

By predicting stress evolution throughout the entire process, foundries and OEMs can optimize casting design, mould design, cooling conditions, and process parameters before production, resulting in higher quality castings with reduced development time and cost.

Why Use Casting Stress Simulation?
stress thermo-mechanical simulation stress contours Stress Legend High Medium Low

Key Benefits of Casting Stress Simulation

Reduced Scrap & Rework

Early identification of critical stress zones, distortion areas, and crack-prone regions minimizes casting rejection and expensive process corrections.

quality improvement

Improved Dimensional Accuracy

Accurate prediction of deformation and warpage allows engineers to modify mould geometry and achieve first-time-right near-net-shape castings.

precision

Optimized Cooling & Solidification

Understanding thermal gradients and stress development helps optimize cooling channels, chills, risers, and process parameters to minimize residual stress.

thermal management

Better Tool & Mould Design

Prediction of stresses acting on casting and mould helps improve tool durability, reduce failures, and extend mould life.

tool durability

Faster Product Development

Virtual validation significantly reduces physical trial iterations, shortening development cycles and accelerating time-to-market.

time-to-market

Improved Product Reliability

Control of residual stress, hot tears, and microstructural effects leads to stronger, more reliable cast components.

performance

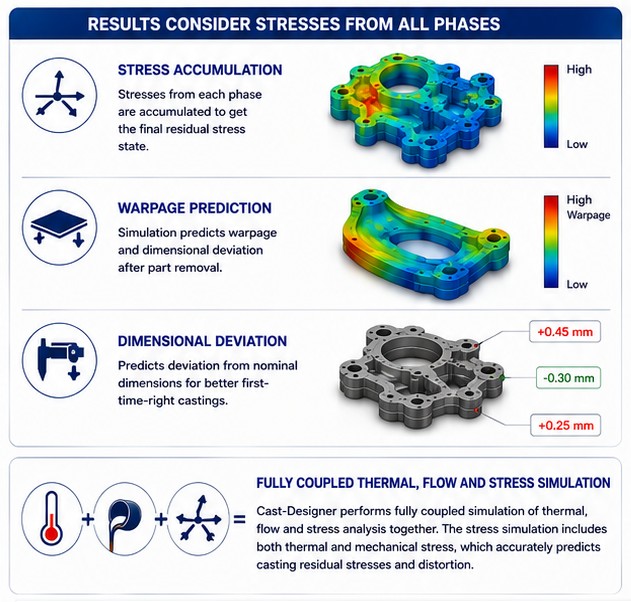

Complete Casting Process Simulation Cast-Designer Stress

Accurate prediction through full manufacturing history

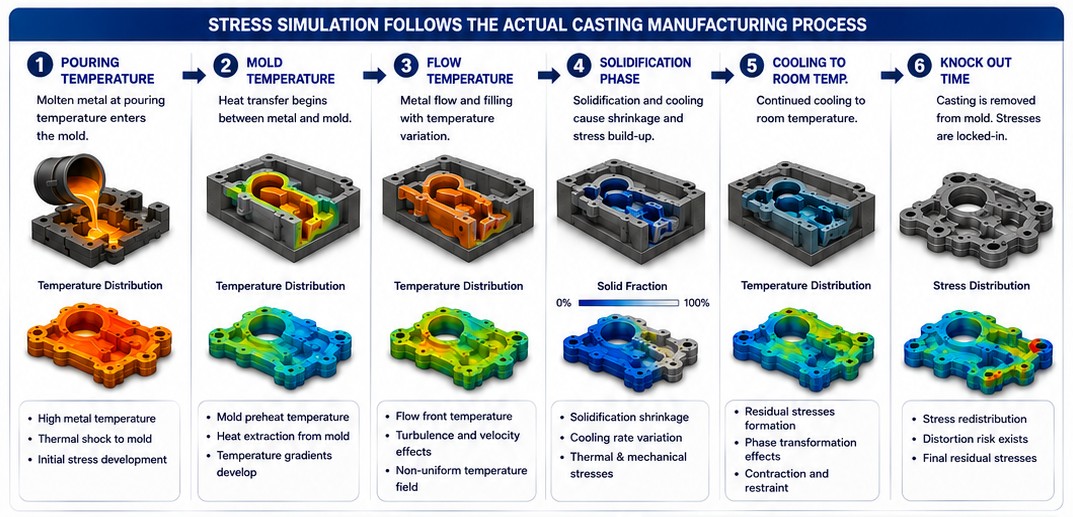

Cast-Designer Stress considers the actual manufacturing history of the casting, delivering a much more accurate prediction compared to traditional FEA analysis of a finished component.

Molten metal flow & mould filling Heat transfer between casting & mould Solidification & shrinkage behavior Thermal contraction & expansion Mould restraint & gap formation Residual stress generation Distortion & springback Crack & hot tear formation

Stress Analysis Capabilities

Thermal Stress Analysis

Predicts stresses generated due to non-uniform temperature gradients during solidification and cooling.

Advantages
  • Identify high thermal stress regions
  • Optimize cooling conditions
  • Reduce risk of cracking and distortion
thermal

Residual Stress Prediction

Calculates locked-in stresses remaining in the casting after cooling and removal from the mould.

Advantages
  • Prevent dimensional instability
  • Improve machining accuracy
  • Increase long-term component reliability
residual

Distortion & Warpage Analysis

Predicts final casting shape after cooling, considering thermal contraction and mechanical restraints.

Advantages
  • Compensate mould geometry before production
  • Achieve tighter dimensional tolerances
  • Reduce machining and correction operations
warpage

Hot Tear Prediction

Identifies areas susceptible to cracking during the final stages of solidification when the material has limited ductility.

Advantages
  • Modify casting geometry
  • Optimize gating, riser, and cooling design
  • Prevent expensive casting failures
hot tear

Thermal Fatigue Analysis

Evaluates repeated thermal loading effects on dies and moulds.

Advantages
  • Predict tool life
  • Optimize maintenance schedules
  • Reduce unexpected tooling failures
fatigue

Quench Stress Analysis

Analyzes stress and deformation caused by rapid cooling or heat treatment operations.

Advantages
  • Control distortion after heat treatment
  • Improve final dimensional stability
  • Reduce rejection after secondary operations
quench

Cast-Designer Performance CDPE

From Casting Defects to Real Component Performance

Bridging the Gap Between Casting and Performance

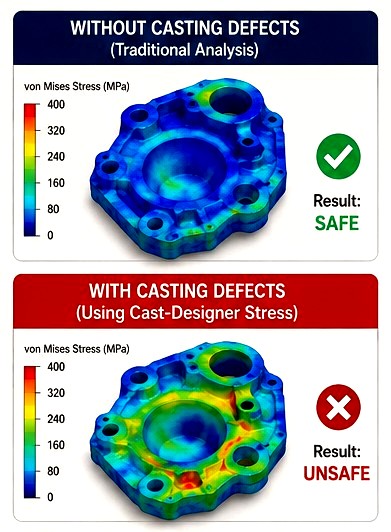

Conventional FEA assumes a perfectly sound component, ignoring actual casting defects. Cast-Designer Performance (CDPE) bridges this gap by directly transferring real casting results into structural and fatigue analysis.
Within, Cast-Designer Stress setup, include all additional load conditions just like in generic FEA CAE Software.

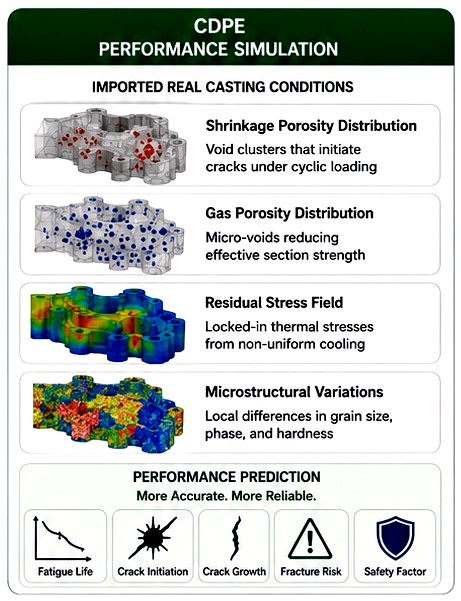

CDPE analysis includes following defects in its final results calculations:

  • Shrinkage porosity distribution
  • Gas porosity defects
  • Residual stress fields
  • Microstructural variations
  • Thermal history of the casting

Unique coupling for realistic prediction

Cast-Designer Performance
Shrinkage porosity distribution Gas porosity defects Residual stress fields Microstructural variations Thermal history
Static strength Fatigue life Ductile fracture behavior Failure initiation locations

CDPE Advantages

Realistic Analysis

Analysis based on as-cast conditions, capturing the true material state including defects, residual stress, and microstructure.

accuracy

Improved Lightweight Design

Optimize component weight with confidence by accounting for real material behavior and defect tolerance.

lightweight

Reduced Prototype Testing

Minimize expensive physical testing through accurate virtual validation of component performance.

cost savings

Better Service Life Prediction

Predict long-term component durability and reliability under real operating conditions.

durability

Higher Confidence in Product Durability

Gain confidence in product reliability and safety through validated performance predictions.

reliability

Accelerated Development

Reduce development time by eliminating trial-and-error through accurate performance simulation.

faster

Distortion Compensation Solver DCS

Automatic Mould Geometry Compensation

Automatic Mould Geometry Compensation

Cast-Designer Stress includes an advanced Distortion Compensation Solver (DCS) that automatically determines the optimal mould geometry required to achieve the desired final casting dimensions.

By predicting distortion and warpage during casting, DCS calculates the exact compensation needed for the mould geometry, eliminating the need for manual trial-and-error adjustments.

Precision compensation for critical dimensional areas
Distortion Compensation Solver

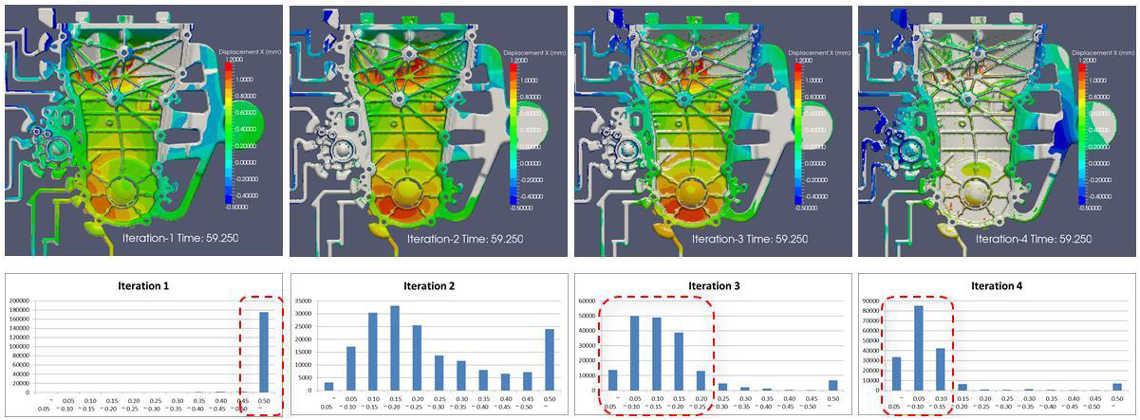

How DCS Works

1

Sensor Point Definition

Critical dimensional control points are selected based on product requirements.

2

Automatic Iterative Optimization

The software automatically modifies the geometry through multiple simulation iterations until dimensional targets are achieved.

3

Precision Compensation

Distortion is minimized specifically in critical areas where dimensional accuracy is essential.

4

CAD Implementation Support

Calculated compensation values can be directly applied to CAD geometry for tooling modification.

Advantages of DCS

Eliminates Manual Trial-and-Error

No more guesswork or iterative physical trials — DCS automatically determines the optimal compensation.

automated

High Dimensional Accuracy

Achieves precise final dimensions by compensating for predicted distortion in critical areas.

precision

Reduced Tooling Modifications

Minimizes the need for expensive and time-consuming mould modifications after initial production.

cost savings

Shortened Development Cycles

Accelerates time-to-market by reducing physical trial iterations and speeding up the optimization process.

faster

Cast-Designer Stress Results

[Example Image: Stress Distribution]

Casting and Mould Stress & Strain

Critical for foundrymen to visualize stress concentrations that lead to casting defects or mold damage. Helps in optimizing gating and cooling systems to reduce stress.

[Example Image: Distorted Part]

Part Deformation and Distortion

Essential for predicting final part geometry after cooling. Foundrymen can compensate in mold design to achieve net-shape castings without costly rework.

[Example Image: Gap Formation]

Gap Formation Prediction

Helps foundrymen understand air gap formation that affects cooling rates. Crucial for designing proper mold cooling systems and achieving consistent quality.

[Example Image: Springback]

Elastic Springback Prediction

Vital for precision castings where small deformations matter. Foundrymen can anticipate and compensate for springback during mold design.

[Example Image: Hot Tear]

Hot Tearing Indication

Critical for foundrymen to identify potential cracking during solidification. Allows for design changes before production begins, saving material and time.

[Example Image: Fatigue Analysis]

Die Life Fatigue

Essential for foundrymen to predict mold lifespan under production conditions. Helps plan maintenance schedules and reduce unexpected downtime.

Cast-Designer Stress Complete Casting Process Simulation

Supported Processes · Materials · Comprehensive Benefits

Supported Casting Processes

High Pressure Die Casting (HPDC) Gravity Die Casting Low Pressure Die Casting (LPDC) Sand Casting Investment Casting Centrifugal Casting

Supported Materials

Aluminum Alloys
ADC12 A380 A356 and other casting grades
Magnesium Alloys
AZ91D AM60B and related alloys
Zinc Alloys
Zamak 3 Zamak 5 and other zinc-based materials
Ferrous Alloys
Grey cast iron Ductile iron Carbon steel Stainless steel
Copper-Based Alloys
Bronze Brass and other engineering copper alloys

Why Choose Cast-Designer Stress?

By combining flow simulation, thermal analysis, solidification, stress calculation, distortion prediction, and real defect-based performance evaluation, Cast-Designer Stress provides one of the most comprehensive virtual casting development solutions available.

Foundries and OEMs can achieve:

Higher first-shot success rate
Reduced casting defects
Lower development cost
Improved dimensional accuracy
Extended mould and die life
Faster time-to-market
More reliable cast components
Lightweight component design
